Kotlin, FireBase 채팅어플 만들기 -4- [Bottom Navigation]

Kotlin, FireBase 채팅어플 만들기 -1- [Splash] (tistory.com)

Kotlin, FireBase 채팅어플 만들기 -2- [Login] (tistory.com)

Kotlin, FireBase 채팅어플 만들기 -3- [Sign Up] (tistory.com)

Kotlin, FireBase 채팅어플 만들기 -4- [Bottom Navigation] (tistory.com)

Kotlin, FireBase 채팅어플 만들기 -5- [친구창_fragment] (tistory.com)

Kotlin, FireBase 채팅어플 만들기 -6- [채팅 리스트_fragment] (tistory.com)

Kotlin, FireBase 채팅어플 만들기 -7- [프로필 변경_fragment] (tistory.com)

Kotlin, FireBase 채팅어플 만들기 -8- [채팅창_activity] (tistory.com)



[전체 코드 깃허브 주소]

LasBe-code/LasbeTalk (github.com)



[참고]

하울의 코딩 채널 - YouTube

GitHub - LasBe-code/LasbeTalk

---

[XML]

---

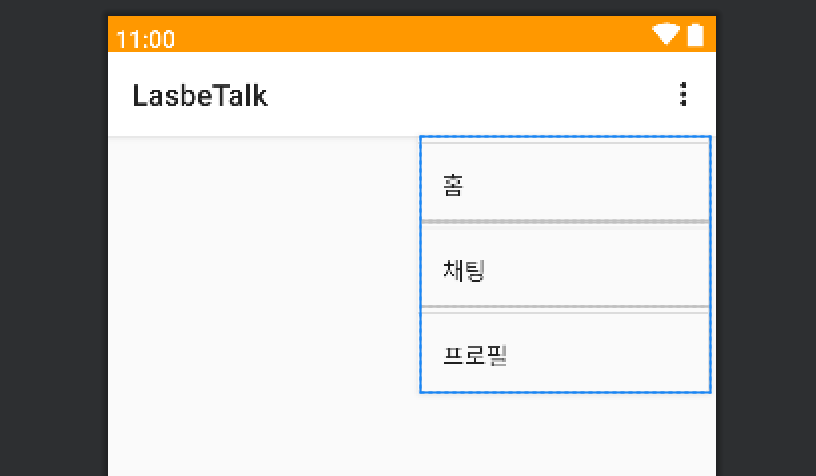

<bottom_menu>

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android">
    <item
        android:id="@+id/menu_home"
        android:title="홈"
        android:icon="@drawable/ic_baseline_home_24"
        />
    <item
        android:id="@+id/menu_chat"
        android:title="채팅"
        android:icon="@drawable/ic_baseline_chat_24"
        />
    <item
        android:id="@+id/menu_profile"
        android:title="프로필"
        android:icon="@drawable/ic_baseline_account_box_24"
        />
</menu>



<activity_main>

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity"
    >
    <FrameLayout
        android:id="@+id/fragments_frame"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:layout_above="@+id/bottom_nav"
        android:layout_alignParentTop="true"
        />
    <com.google.android.material.bottomnavigation.BottomNavigationView
        android:id="@+id/bottom_nav"
        app:menu="@menu/bottom_menu"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_centerHorizontal="true"
        android:background="#FFC56F"
        />
</RelativeLayout>

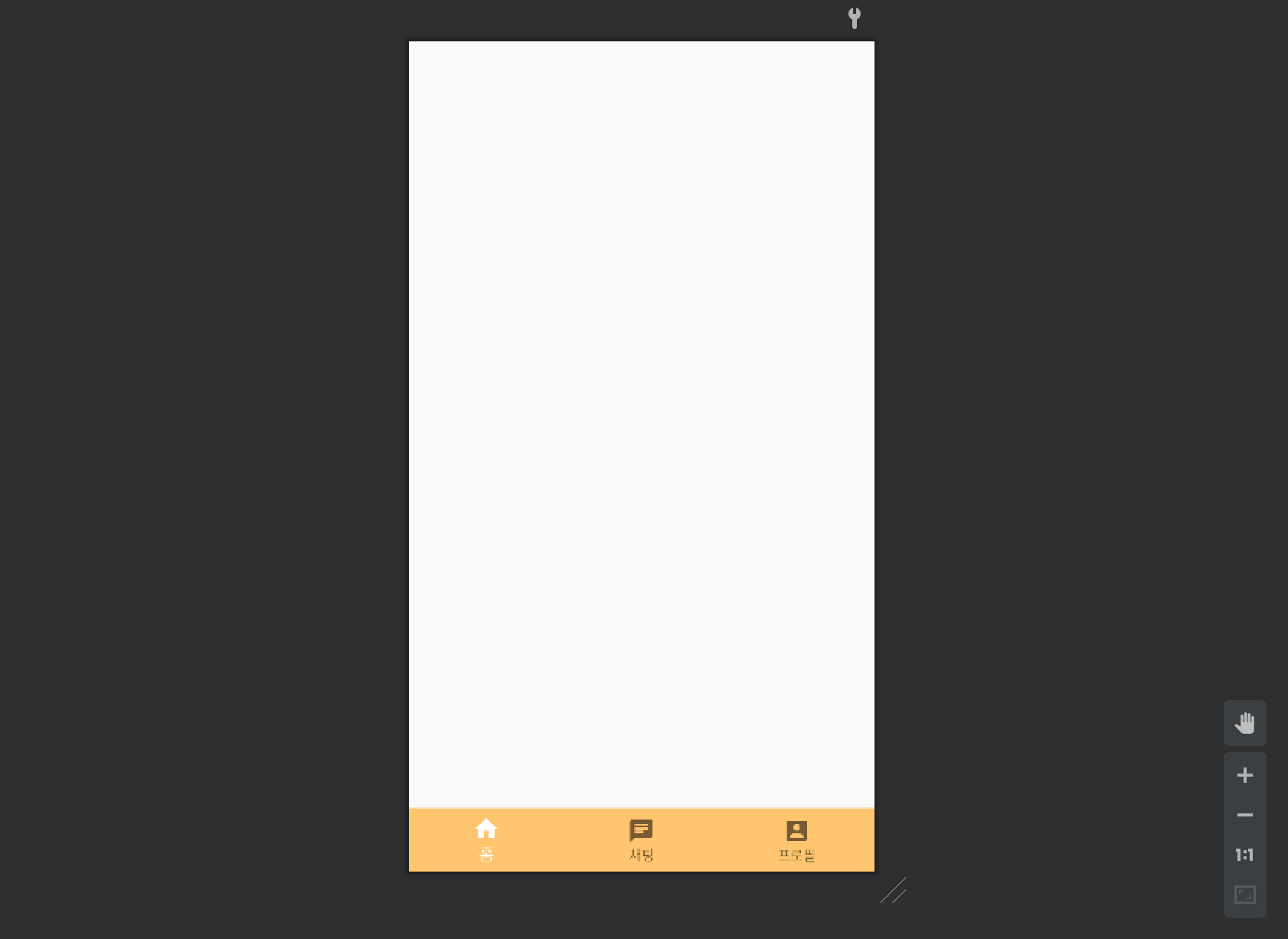

상단은 프래그먼트를 뿌려줄 FrameLayout으로 구성해주고 above를 통해 네비게이션을 제외한 부분만 차지할 수 있도록 하였다.

하단은 bottom_menu에서 구성한 메뉴들을 BottomNavigationView로 불러와 하단 네비게이션바를 구성해주었다.

반응형

---

[액티비티 or 프래그먼트]

---

private lateinit var homeFragment: HomeFragment
private lateinit var chatFragment: ChatFragment
private lateinit var profileFragment: ProfileFragment

@Suppress("DEPRECATION")
class MainActivity : AppCompatActivity() {
    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)
        setContentView(R.layout.activity_main)

        bottom_nav.setOnNavigationItemSelectedListener(BottomNavItemSelectedListener)
        homeFragment = HomeFragment.newInstance()
        supportFragmentManager.beginTransaction().add(R.id.fragments_frame, homeFragment).commit()

    }
    private val BottomNavItemSelectedListener = BottomNavigationView.OnNavigationItemSelectedListener{
        when(it.itemId){
            R.id.menu_home -> {
                homeFragment = HomeFragment.newInstance()
                supportFragmentManager.beginTransaction().replace(R.id.fragments_frame, homeFragment).commit()
            }
            R.id.menu_chat -> {
                chatFragment = ChatFragment.newInstance()
                supportFragmentManager.beginTransaction().replace(R.id.fragments_frame, chatFragment).commit()
            }
            R.id.menu_profile -> {
                profileFragment = ProfileFragment.newInstance()
                supportFragmentManager.beginTransaction().replace(R.id.fragments_frame, profileFragment).commit()
            }
        }
        true
    }


}



lateinit으로 프래그먼트들을 초기화 시켜준다.



import 시켜준 BottomNavigationView를 이용하여 ItemSelectListener를 선언해주고

디폴트 프래그먼트는 home 프래그먼트로 지정해준다.

---

[아쉬운 점]

xml의 레이아웃을 ConstratinLayout으로 통일시키지 못했다.
